Smartex Miracle All In One

High Speed Stone Washing Machine

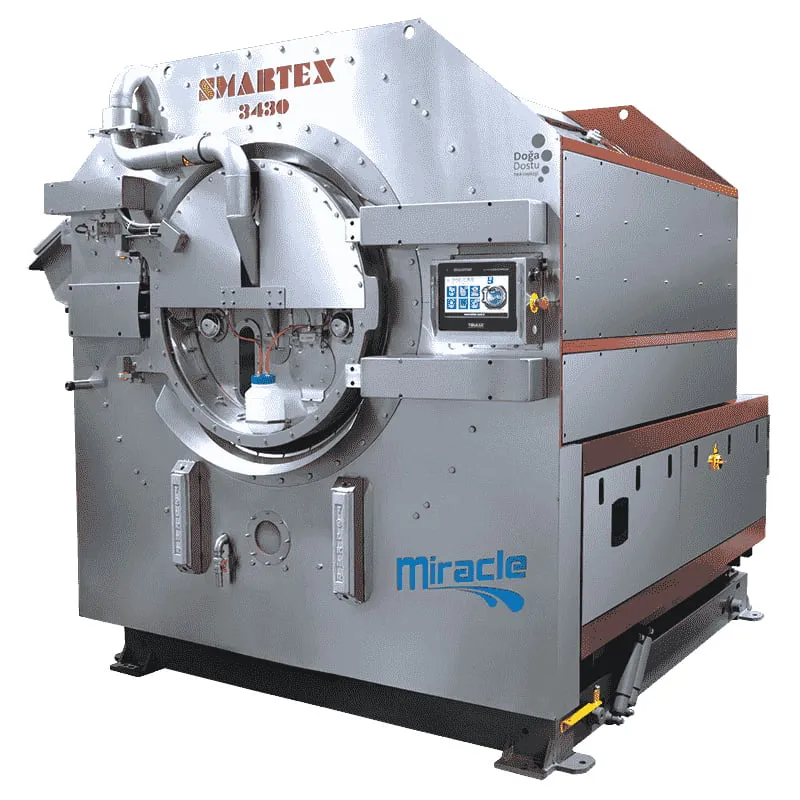

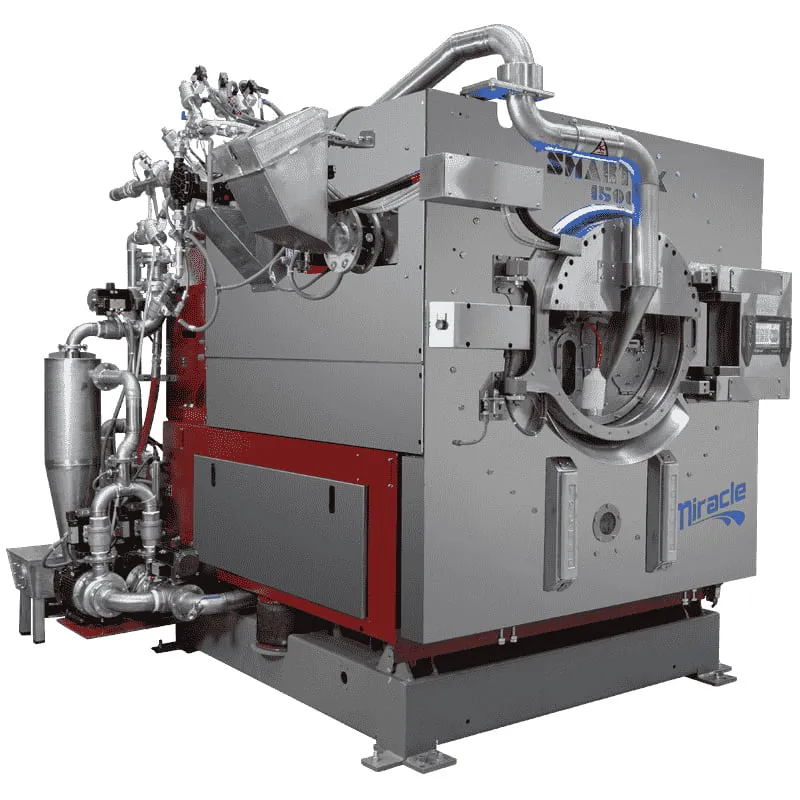

Smartex Miracle All In One Stone Washing Machine

Stone washing machines play an important role in the textile industry, especially in the processing of denim and cotton fabrics. These machines ensure that the fabrics reach the desired appearance and texture, while also increasing their durability. The washing process is critical in terms of both aesthetics and functionality.

Features

icon 14

1:1 - 1:2 Flote

Dry Garments

icon 9

400 G Extraction Force

20% Less Drying Energy and Time

icon 14

Polyrib Ecodrum Technology

50% less water, chemicals steam and waste water
40% less electric energy

icon 11

Smart Balancing

Totally vibration free extraction eliminates the risk of damages

icon 13

Spin Dye System

High speed dyeing with Spin Dye Jet Spraying Technology Prevents all crease marks, abrassion and undesired mechanical effects.

icon 1

Double Pump Circulation & Drain

icon 16

Suitable for stone washing applications with reinforced construction (optional)

icon 15

316 L 3+3 mm Removable Drum Totally Welding Free (optional)

icon 10

Easily Cleanable Lint & Stone Filter

icon 12

Smart Bubble Suitable For Smart Flow Nano Bubbles Spray

(optional)

icon 4

Automatic Weighing System

The loaded textile is automatically weighed and the amounts of water, steam and chemicals are adjusted according to the load ratio (optional)

icon 5

Suitable For All Ozone Applications

(optional)

icon 3

Automatic Loading Door

(optional)

icon 2

Backwards Tilting

Easy and Automatic Loading (optional)

ultimate kontrol sistem icon 3

Tolkar Ultimate Control System

remote access enables updates of parameters or versions, recipe preparation, upload / download, recipe transfer to desired machines
USB programme and parameter transfer between machines
100 recipes, 100 steps

icon 6

PLC Controlled

10" Touch Screen Panel

icon 8

Scada System Controls and Data Acquisition System

(optional)

icon 7

Auto Report

Reporting of Consumptions and productivity (optional)

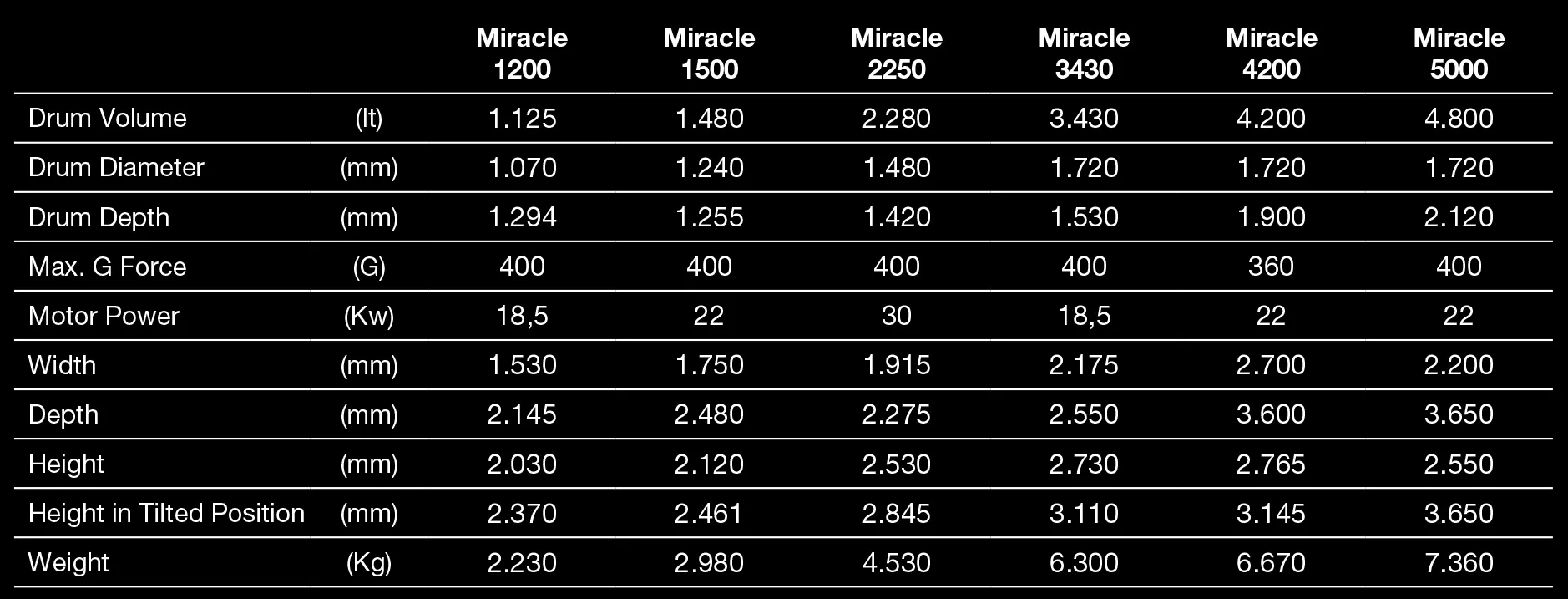

Technical Details

yuksek devir tas yikama future all in one tekstil tablo 768x449 1

Visuals

Videos

Product Information

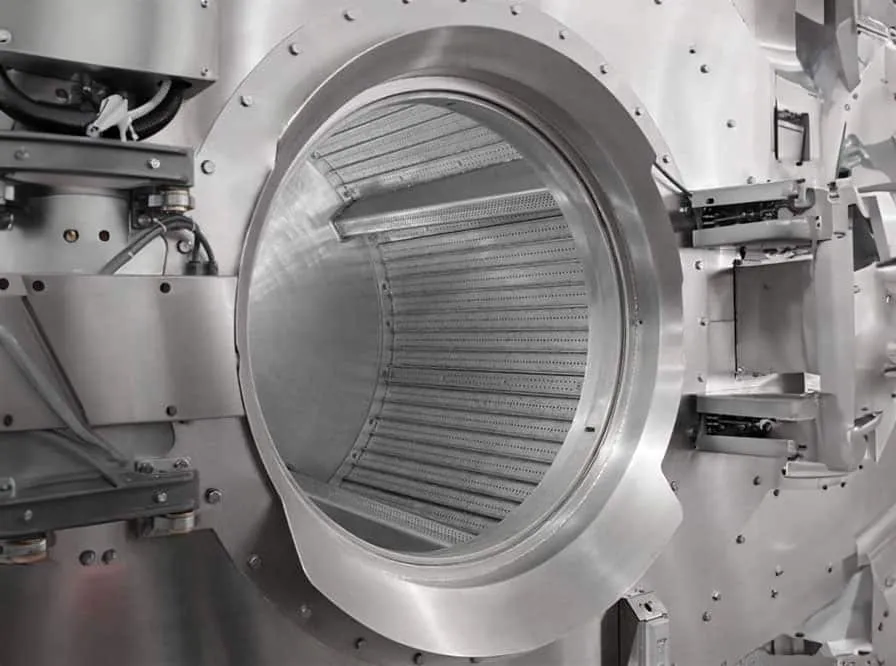

PolyRib Drum

Stone Wash & Polyrib Drum

Engineered drum design with reinforced removable PolyRib inner lining performs at 1:2 L/R for maximum stone effects. All other Miracle advantages are standard.

Tolkar Future All In One

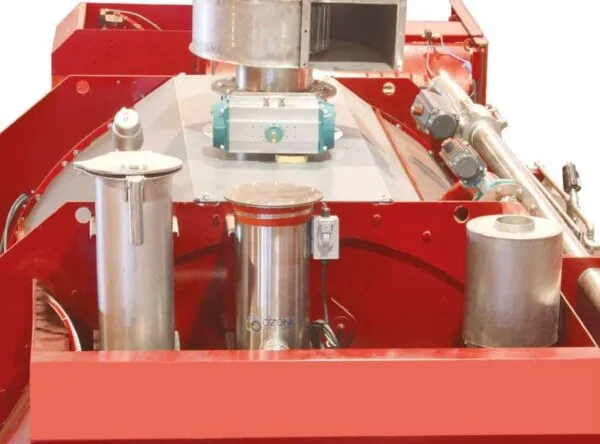

Ozon (O₃) Applications

Designed to perform with wet and dry ozone applications for most of the treatment processes.

Tolkar Future All In One

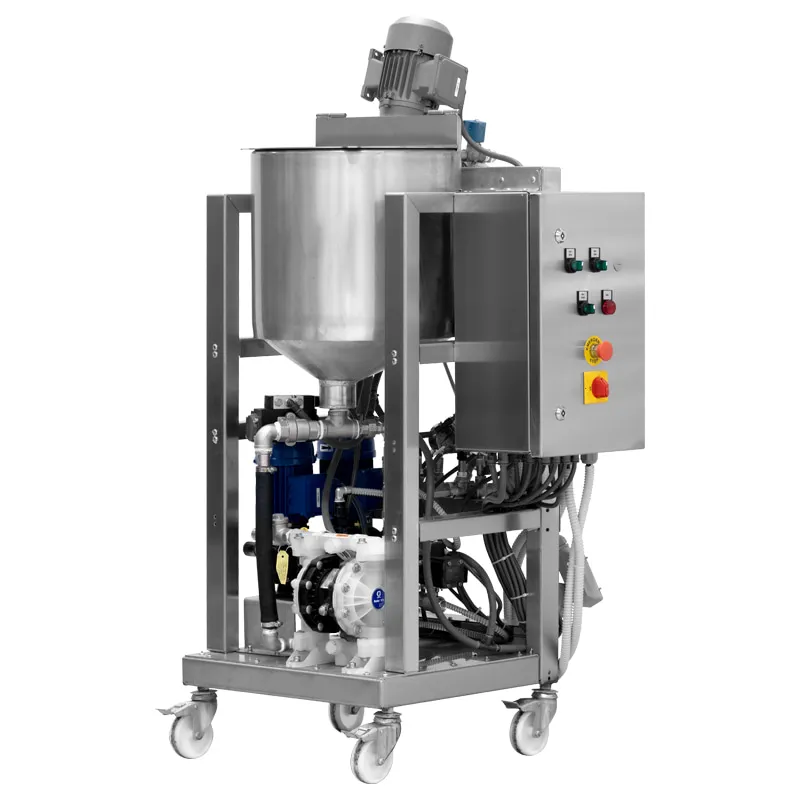

Smart Flow

Nano bubble spraying technology saves upto 95% from water, 90% from chemicals and 100% from heating energy. Fully consistent and sustainable production with in built dosing pumps those are controllable from machine panel. Multiple chemical dosing with double pump operation.

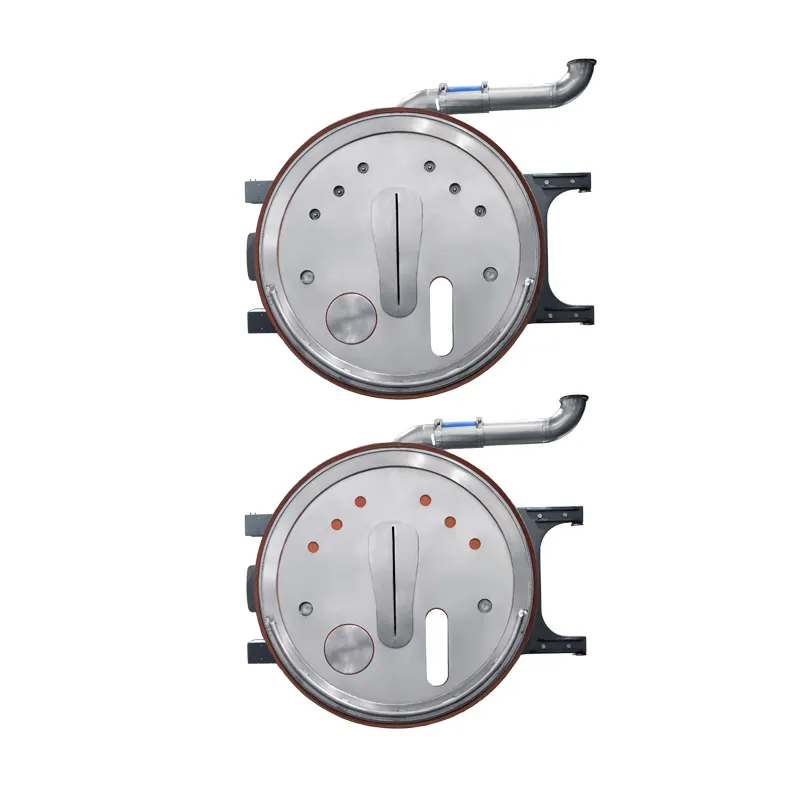

Smart Flow Kapakları

Smart Flow Covers

Position of nozzles with pneumatic covers for smart flow and other operations. No leakage risk from nozzles into the drum.

Frequently Asked Questions

What do you produce?

Textile Finishing Machines: Ozone Systems, High Speed Squeezing Textile (Stone) Washing and Dyeing Machines, Low Speed Textile (Stone) Washing and Dyeing Machines, Sample Washing and Dyeing Machines, Textile Drying Machines and Automation Systems.

Industrial Laundry Equipment: Washing, Drying, Ironing and Folding Machines.

Hygienic Hospital Machines: Hygienic Barrier Washing Machines

  1. Textile
  2. Tourism
  3. Hospital
  4. Commercial Laundry
  5. Food – Industry
  6. Official and Other Institutions

You can call (0232) 376 85 00 to get an offer or you can send your information and your need/project to Satis@TOLKAR.COM.TR. Our authorized personnel will contact you as soon as possible.

For site exploration, you can call the TOLKAR representative you have contacted and specify your exploration request. Our authorized team will come to your location and make a site survey. The authorized person will inform you whether the area you have chosen is suitable or not. If requested, we can draw your projects on the settlement area.

You can enter the page of the product you want from the Products tab and access the technical details at the bottom of the page. You can also download catalogs from the bottom of the product pages.
