Tolkar Vela Silindir Ütü

Flatwork Ironers

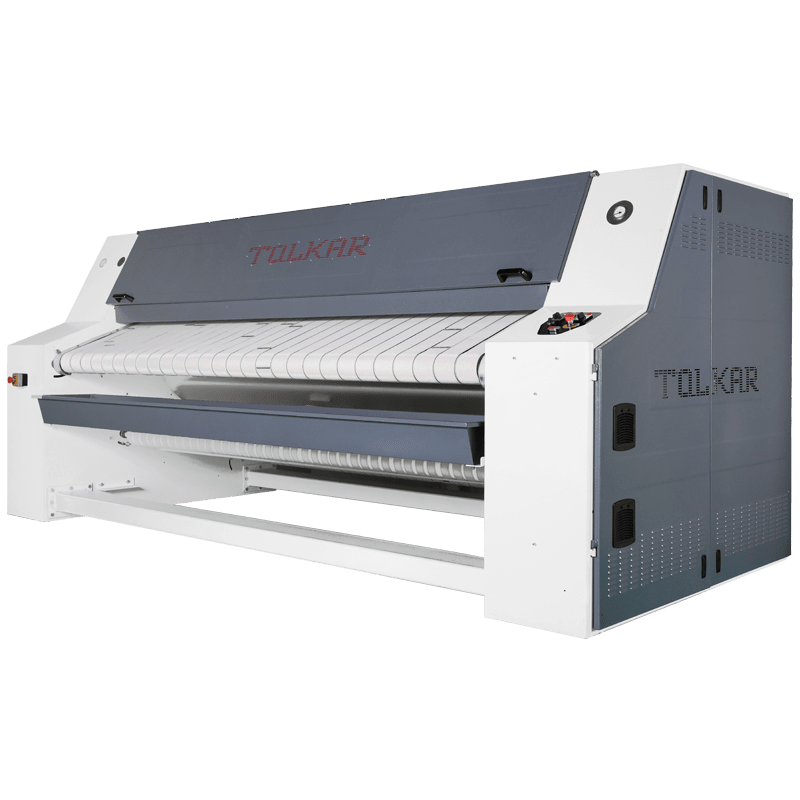

Tolkar Vela Flatwork Ironers

Flatwork ironers are the perfect solution to meet professional ironing needs. They increase the competitiveness of businesses with their high efficiency, energy saving and user-friendly features. If you want to increase efficiency in your laundry or textile business, you should choose industrial cylinder irons.
Get an offer
Telephone
WHATSAPP

Features

candostu

Eco-Friendly Technology

alev

Gas Heating Option in All Models

icon 22

Moisture Collecting Hood Moisture Discharging Fan System in All Models

Original Nomex Tapes

ultimate kontrol sistem icon 3

Tolkar Ultimate Control System

remote access, instant mobile tracking
USB program transfer between machines
100 ironing programs, 5 of which are ready
Reporting Quantity of laundry, consumption values, running time are reported
Remote instant tracking and reporting system ofSmarteye track (optional)

Opsiyonlar

icon 22 1

Automatic Textile Length Measurement

(Standard on Vela 7532 - 5532) (Optional)

icon 22 1

Automatic Cylinder Speed Adjustment According to Textile Type and Moisture

(Standard on Vela 7532 - 5532) (Optional)

paslanmaz celik

Stainless Steel Master Cylinder

(optional)

katlama

Self Folding

Vela 7532 - 5532 Model 35-50 cm range (2-10) length folding Automatic textile length and moisture measurement feature

PlcKontrolu icon 1

PLC Controlled

7'' Touch Screen
(Standard on Vela 7532 - 5532) (Optional)

Gözlem

Smarteye

Parkurun uzaktan anlık takip ve raporlama sistemi (opsiyonel)

Technical Details

Tolkar 320×1800 Silindir Ütü
Heating TypeElectricity
Cylinder Diameter(mm)320
Cylinder Width(mm)1.800
Ironing Capacity(kg/hour)30 - 35
Operation Speed(m/min)2 - 6
Engine Power(Kw)0,37
Fan Motor Power(Kw)0,37
Electric Heating Power(Kw)15
Steam Consumption(kg/hour)-
Gas Thermal Power(Kcal/hour)-
Width(mm)2.385
Depth(mm)1.012
Height(mm)992
Weight(Kg)500
Silindir Ütü
Tolkar 550×2000 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)550
Cylinder Width(mm)2.000
Ironing Capacity(kg/hour)65 - 75
Operation Speed(m/min)3,5 / 10,5
Engine Power(Kw)1,1
Fan Motor Power(Kw)0,37
Electric Heating Power(Kw)22,5
Steam Consumption(kg/hour)45
Gas Thermal Power(Kcal/hour)26.400
Width(mm)2.589 / 2.823 / 2.966
Depth(mm)1.196 / 1.196 / 1.334
Height(mm)1.523 / 1.523 / 1.569
Weight(Kg)930
Silindir Ütü
Tolkar 550×2500 Silindir Ütü
Heating TypeElectricity / Gas
Cylinder Diameter(mm)550
Cylinder Width(mm)2.500
Ironing Capacity(kg/hour)85 - 105
Operation Speed(m/min)3,5 / 10,5
Engine Power(Kw)1,1
Fan Motor Power(Kw)0,37
Electric Heating Power(Kw)27
Steam Consumption(kg/hour)50
Gas Thermal Power(Kcal/hour)28.875
Width(mm)3.089 / 3.323 / 3.466
Depth(mm)1.196 / 1.196 / 1.334
Height(mm)1.523 / 1.523 / 1.569
Weight(Kg)1.050
Silindir Ütü
Tolkar 550×3000 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)550
Cylinder Width(mm)3.000
Ironing Capacity(kg/hour)90 - 120
Operation Speed(m/min)3,5 / 10,5
Engine Power(Kw)0,55 / 0,55 / 1,1
Fan Motor Power(Kw)0,37 / 0,37 / 2 x 0,37
Electric Heating Power(Kw)31,5
Steam Consumption(kg/hour)55
Gas Thermal Power(Kcal/hour)31.350
Width(mm)3.589 / 3.823 / 3.966
Depth(mm)1.196 / 1.196 / 1.334
Height(mm)1.523 / 1.523 / 1.569
Weight(Kg)1.170
Silindir Ütü
Tolkar 550×3200 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)550
Cylinder Width(mm)3.200
Ironing Capacity(kg/hour)90 - 120
Operation Speed(m/min)3 / 9
Engine Power(Kw)0,55 / 0,55 / 1,1
Fan Motor Power(Kw)0,37 / 0,37 / 2 x 0,37
Electric Heating Power(Kw)31,5
Steam Consumption(kg/hour)55
Gas Thermal Power(Kcal/hour)31.350
Width(mm)3.930 / 3.930 / 4.090
Depth(mm)1.150 / 1.200 / 1.200
Height(mm)1.355 / 1.355 / 1.675
Weight(Kg)1.360
Silindir Ütü
Tolkar 750×2000 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)750
Cylinder Width(mm)2.000
Ironing Capacity(kg/hour)80 - 100
Operation Speed(m/min)4,5 / 13,5
Engine Power(Kw)1,1
Fan Motor Power(Kw)0,37 / 0,37 / 0,37
Electric Heating Power(Kw)30
Steam Consumption(kg/hour)65
Gas Thermal Power(Kcal/hour)31.350
Width(mm)2.835 / 2.995 / 2.995
Depth(mm)1.400 / 1.450 / 1.540
Height(mm)1.850 / 1.800 / 2.170
Weight(Kg)1.475
Silindir Ütü
Tolkar 750×2500 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)750
Cylinder Width(mm)2.500
Ironing Capacity(kg/hour)90 - 120
Operation Speed(m/min)4,5 / 13,5
Engine Power(Kw)1,1
Fan Motor Power(Kw)0,37 / 0,37 / 0,37
Electric Heating Power(Kw)37,5
Steam Consumption(kg/hour)70
Gas Thermal Power(Kcal/hour)31.350
Width(mm)3.335 / 3.425 / 3.425
Depth(mm)1.400 / 1.450 / 1.540
Height(mm)1.850 / 1.850 / 2.170
Weight(Kg)1.600
Silindir Ütü
Tolkar 750×3000 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)750
Cylinder Width(mm)3.000
Ironing Capacity(kg/hour)120 - 150
Operation Speed(m/min)4,5 / 13,5
Engine Power(Kw)1,1
Fan Motor Power(Kw)0,37 / 0,37 / 2 x 0,37
Electric Heating Power(Kw)42
Steam Consumption(kg/hour)75
Gas Thermal Power(Kcal/hour)34.650
Width(mm)3.685 / 3.870 / 4.010
Depth(mm)1,697 / 1,697 / 1,714
(2,260) (2,260) (2,405)
Height(mm)1.697 / 1.697 / 1.714
Weight(Kg)1.725
Silindir Ütü
Tolkar 750×3200 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)750
Cylinder Width(mm)3.200
Ironing Capacity(kg/hour)100 - 130
Operation Speed(m/min)3 / 9
Engine Power(Kw)1,1
Fan Motor Power(Kw)0,37 / 0,37 / 0,75
Electric Heating Power(Kw)54
Steam Consumption(kg/hour)80
Gas Thermal Power(Kcal/hour)49.500
Width(mm)3.987 / 3.987 / 4.207
Depth(mm)1.564 / 1.564 / 1.679
Height(mm)1.564 / 1.564 / 1.679
Weight(Kg)1.920
Silindir Ütü
Tolkar 950×3000 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)950
Cylinder Width(mm)3.000
Ironing Capacity(kg/hour)160 - 200
Operation Speed(m/min)6 - 18
Engine Power(Kw)2,2 / 2,2 / 2 x 1,5
Fan Motor Power(Kw)3 / 3 / 0,37 + 3
Electric Heating Power(Kw)72
Steam Consumption(kg/hour)100
Gas Thermal Power(Kcal/hour)66.000
Width(mm)4.113 / 4.113 / 4.400
Depth(mm)2.038 / 2.038 / 2.038 / 2.038
(3.016) (3.016) (3.016) (3.016)
Height(mm)2.764 / 2.764 / 2.247
Weight(Kg)2.525 / 2.525 / 2.325
Bantlı Ütü Makinesi

Optional Cylinder Width : 3300 - 3500
Common Speed Synchronization in Feeding, Ironing and Sheet Folding

Tolkar 1200×3000 Silindir Ütü
Heating TypeElk. / Buh. / Gas
Cylinder Diameter(mm)1.200
Cylinder Width(mm)3.000
Ironing Capacity(kg/hour)200 - 250
Operation Speed(m/min)7 - 22
Engine Power(Kw)2,2 / 2,2 / 2 x 1,5
Fan Motor Power(Kw)3 / 3 / 0,37 + 3
Electric Heating Power(Kw)84
Steam Consumption(kg/hour)150
Gas Thermal Power(Kcal/hour)82.500
Width(mm)4.137 / 4.137 / 4.156
Depth(mm)2.203 / 2.203 / 2.079
(3.181) (3.181) (3.057)
Height(mm)3.042 / 3.042 / 2.971
Weight(Kg)3.990 / 3.990 / 3.640
Bantlı Ütü Makinesi

Optional Cylinder Width : 3300 - 3500
Common Speed Synchronization in Feeding, Ironing and Sheet Folding

Visuals

Frequently Asked Questions

What do you produce?

Textile Finishing Machines: Ozone Systems, High Speed Squeezing Textile (Stone) Washing and Dyeing Machines, Low Speed Textile (Stone) Washing and Dyeing Machines, Sample Washing and Dyeing Machines, Textile Drying Machines and Automation Systems.

Industrial Laundry Equipment: Washing, Drying, Ironing and Folding Machines.

Hygienic Hospital Machines: Hygienic Barrier Washing Machines

  1. Textile
  2. Tourism
  3. Hospital
  4. Commercial Laundry
  5. Food – Industry
  6. Official and Other Institutions

You can call (0232) 376 85 00 to get an offer or you can send your information and your need/project to Satis@TOLKAR.COM.TR. Our authorized personnel will contact you as soon as possible.

For site exploration, you can call the TOLKAR representative you have contacted and specify your exploration request. Our authorized team will come to your location and make a site survey. The authorized person will inform you whether the area you have chosen is suitable or not. If requested, we can draw your projects on the settlement area.

You can enter the page of the product you want from the Products tab and access the technical details at the bottom of the page. You can also download catalogs from the bottom of the product pages.

Started in 1969 in a small workshop in Izmir, TOLKAR-SMARTEX has become Turkey’s largest manufacturer with three modern factories located in Izmir Atatürk Organized Industrial Zone and more than 300 employees.
