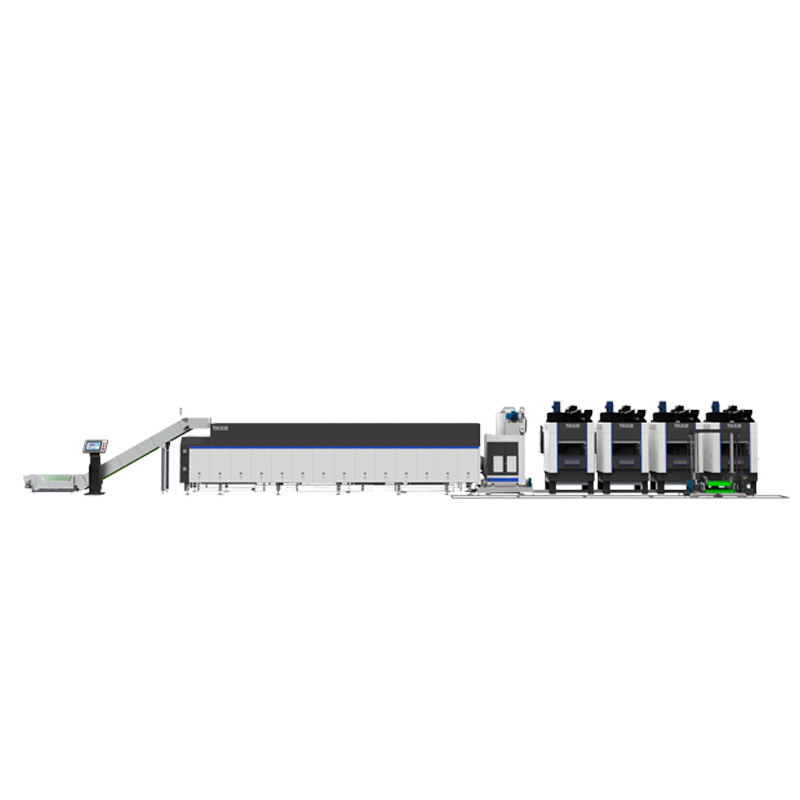

Tunnel Washer
60 – 80 kg
Options of 8, 10, 12, 13, 14, or 16
Mechanism for bottom transfer between compartments
Effective washing with high-pressure steam
Water savings through reuse of washing and rinsing water
Proportional consumption of water, detergent, and energy according to the load weight
Design insulated for minimal heat and energy loss
User-friendly interface for easy control
Programming tailored to various washing needs
Flexible washing processes
Easy updating and management
Detailed tracking of washing processes
Integrated management capability
Facilitates workflow
Integrated fire suppression for safety
Enhances energy efficiency
Provides maintenance convenience
Efficiency in fuel consumption
Automates filtering processes
Manages lint accumulation centrally
| TYS 1660 | ||
| Number of Compartments | 16 | |
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 35,5 |
| Depth | (mm) | 14000 |
| Width | (mm) | 2224 |
| Height | (mm) | 3278 |
| Weight | (Kg) | 17120 |
| TYS 1460 | ||
| Number of Compartments | 14 | |
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 28,5 |
| Depth | (mm) | 12457 |
| Width | (mm) | 2224 |
| Height | (mm) | 3304 |
| Weight | (Kg) | 15390 |
| TYS 1360 | ||
| Number of Compartments | 13 | |
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 28,5 |
| Depth | (mm) | 11820 |
| Width | (mm) | 2224 |
| Height | (mm) | 3304 |
| Weight | (Kg) | 14890 |
| TYS 1260 | ||
| Number of Compartments | 12 | |
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 28,5 |
| Depth | (mm) | 11183 |
| Width | (mm) | 2224 |
| Height | (mm) | 3304 |
| Weight | (Kg) | 14390 |
| TYS 1060 | ||
| Number of Compartments | 10 | |
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 28,5 |
| Depth | (mm) | 9871 |
| Width | (mm) | 2224 |
| Height | (mm) | 3200 |
| Weight | (Kg) | 13400 |
| TYS 860 | ||
| Number of Compartments | 8 | |
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 28,5 |
| Depth | (mm) | 8500 |
| Width ( | mm) | 2245 |
| Height | (mm) | 3200 |
| Weight | (Kg) | 12310 |
| TP 60 | ||
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 15,55 |
| Width | (mm) | 2641 |
| Depth | (mm) | 2228 |
| Height | (mm) | 4050 |
| Weight | (Kg) | 17140 |
| TPT 120 B | ||
| Heating Type | Steam | |
| Loading Capacity | (Kg) | 120 |
| Drum Volume | 3000 | |
| Engine Power | (Kw) | 2,2 |
| Fan Motor Power | (Kw) | 11 |
| Steam Consumption | (Kg / Hour) | 350 |
| Width | (mm) | 2850 |
| Depth | (mm) | 2220 |
| Height | (mm) | 3800 |
| Weight | (Kg) | 3000 |
| TS - 60 | ||
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 4,5 |
| Width | (mm) | 3040 |
| Depth | (mm) | 1825 |
| Height | (mm) | 3290 |
| Weight | (Kg) | 1000 |
| TC - 60 | ||
| Compartment Capacity | (Kg) | 60 |
| Engine Power | (Kw) | 1,65 |
| Width | (mm) | 8535 |
| Depth | (mm) | 1540 |
| Height | (mm) | 3525 |
| Weight | (Kg) | 980 |
